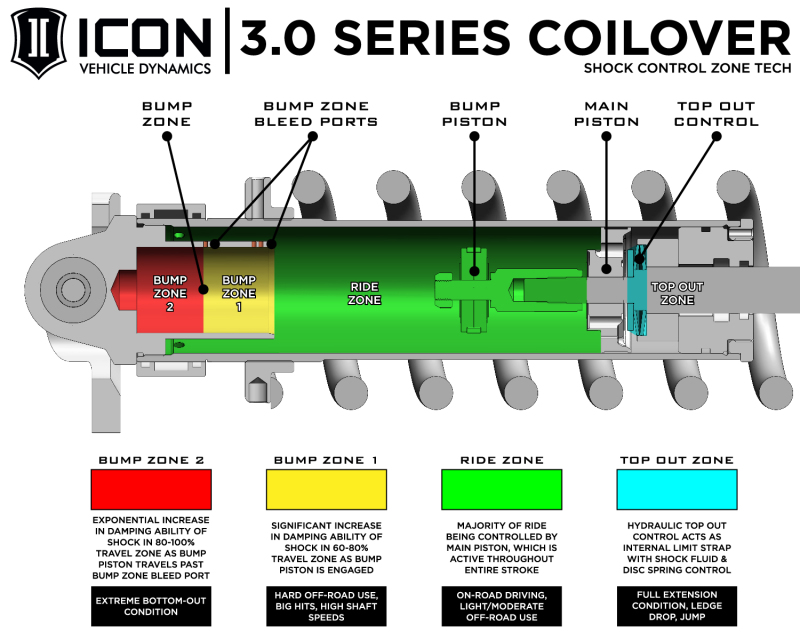

The ICON Vehicle Dynamics Stage 6 3.0 complete suspension system for the 2022-2023 Toyota Tundra builds upon the Stage 5 3.0 suspension system with the addition of triple rate rear coil springs and an adjustable rear track bar. To compliment the rear coils and track bar, 3.0 Series CDEV front coilovers are included along with tubular front upper control arms, a billet rear upper/lower link combo, a front sway bar drop kit, and 3.0 Series CDEV rear shocks. This system offers improved on- and off-road performance with adjustable compression damping, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35" tires.
This Part Fits:
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2022-2023 | Toyota | Tundra | 1794 Edition |
| 2022-2023 | Toyota | Tundra | Capstone |
| 2022-2023 | Toyota | Tundra | Limited |
| 2022-2023 | Toyota | Tundra | Platinum |
| 2022-2023 | Toyota | Tundra | SR |
| 2022-2023 | Toyota | Tundra | SR5 |
| 2022-2023 | Toyota | Tundra | TRD Pro |
- Category:
- Suspension>Coilovers
- Core:
- N
- LTL:
- N
- MPN:
- K53216TS
- Proposition 65:
- Y
- Special Order:
- Y
