Oracle In-Line RGB Link SEE WARRANTY - 1624-504

MSRP: $3.25
$2.93
( saved $0.32 )
No reviews yet Write a Review

Image is a representation of this item. Actual item may vary.

SKU:
ORL1624-504
UPC:
162450420132
Availability:
Special order
  • Free Ground Shipping

  • Easy Checkout

  • Safe Payments

  • Amazing Selection

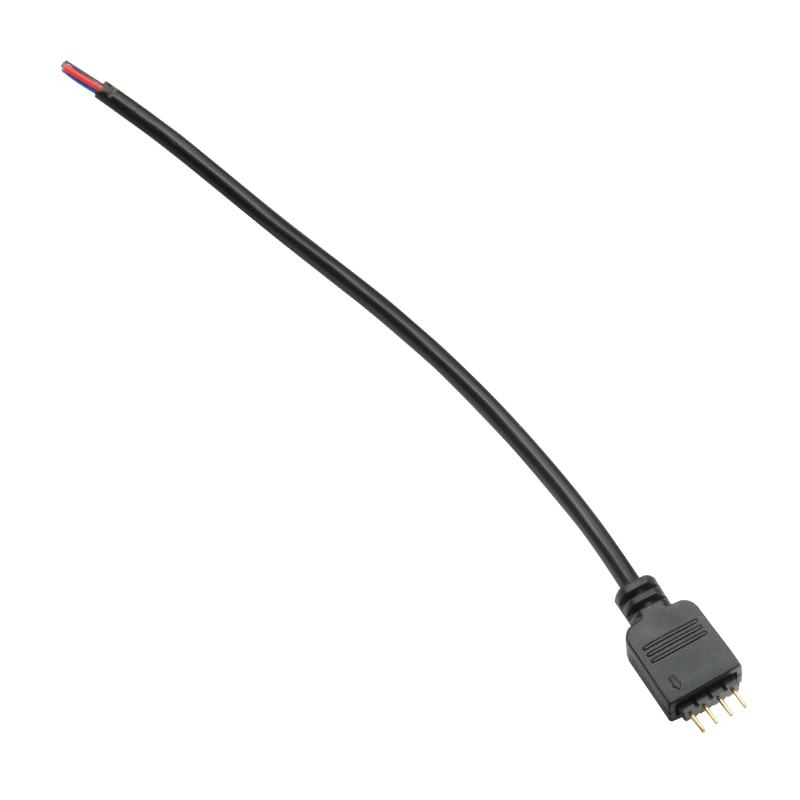

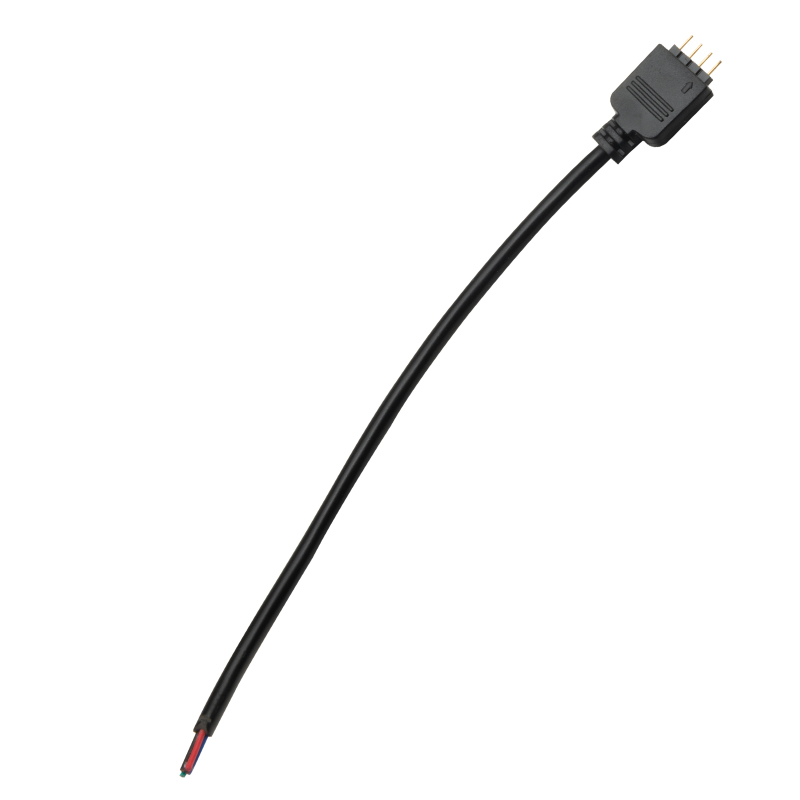

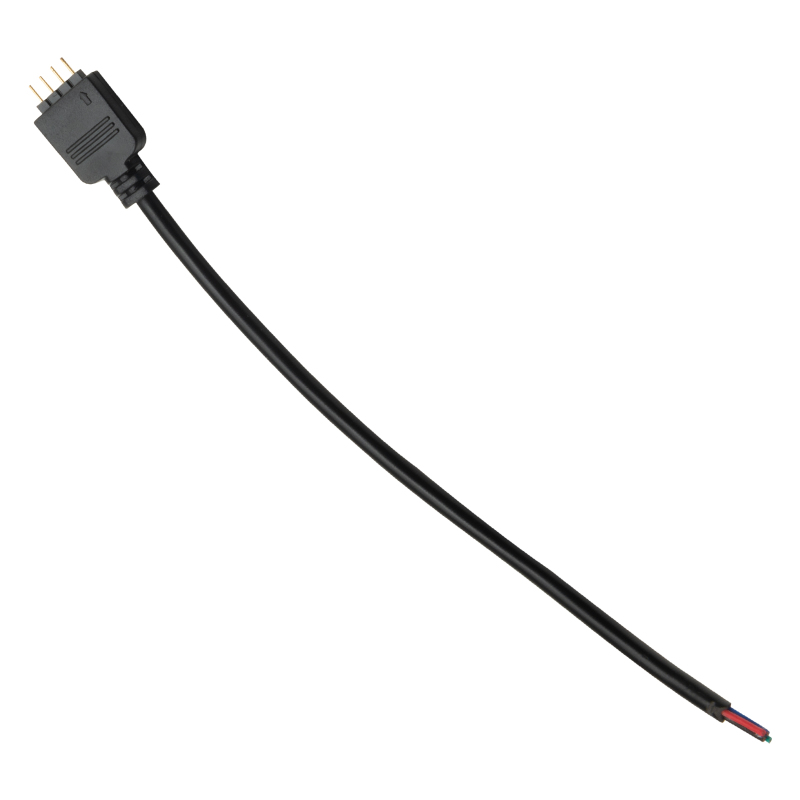

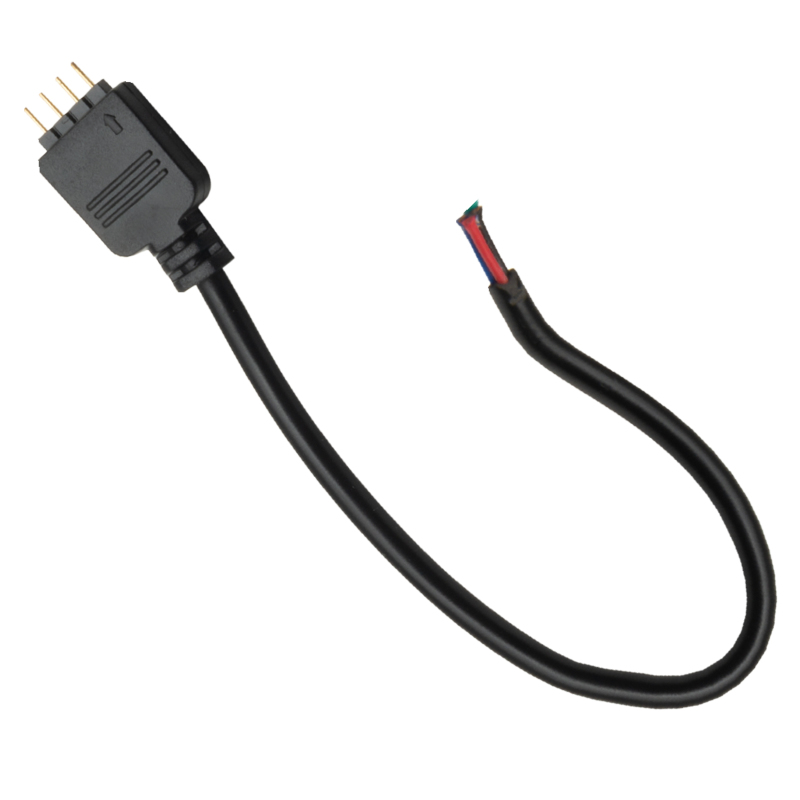

In-line three channel RGB amplifier is used to increase the load capability and extend the signal of any universal RGB controller. This in line amplifier is required if you are exceeding the maximum load capability of any universal RGB controller. 2 x 4-pin RGB pigtail connectors included. With supplied RGB pigtail connectors, bridge 2 segments of LED RGB Strip with the LED amplifier in between. Connect RED and BLACK wires to 12 Volt power source. Product Specifications: - Voltage: 8-16V - Length: 1.6 in - Width: 0.4 in - Height: 0.1 in - Max load current: 12 Amps - Output: 3 channels - Working temperature: -4-140F- Static power consumption: < 1 Watt - Output Power: 144 Watts - RoHS compliant, FCC, CE Certified, cULus Classified - 2 Year Warranty
Category:
Lights>Light Accessories and Wiring
LTL:
N
MPN:
1624-504
Proposition 65:
Y
Special Order:
Y
Core:
N
