Aeromotive

Aeromotive Phantom 340 Fuel System - Return Style w/3/8in Quick Connect - 17166

$1,586.95
No reviews yet Write a Review

Image is a representation of this item. Actual item may vary.

SKU:
AER17166
UPC:
684980005967
Availability:
Special order
  • Free Ground Shipping

  • Easy Checkout

  • Safe Payments

  • Amazing Selection

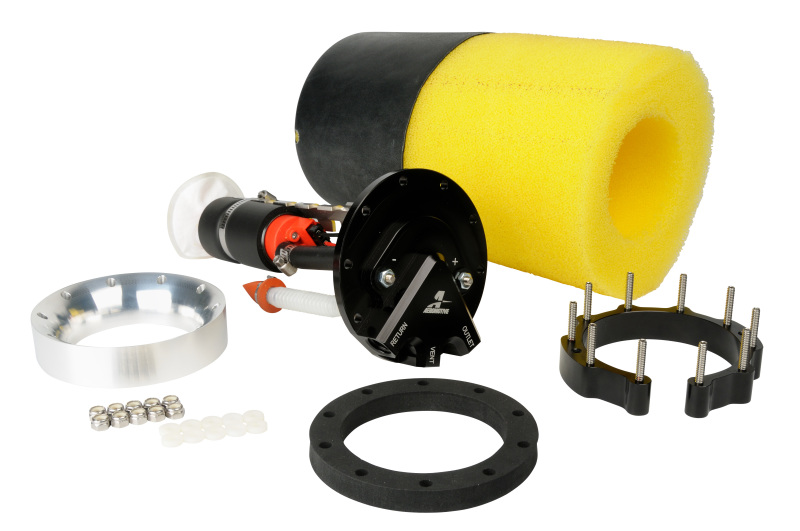

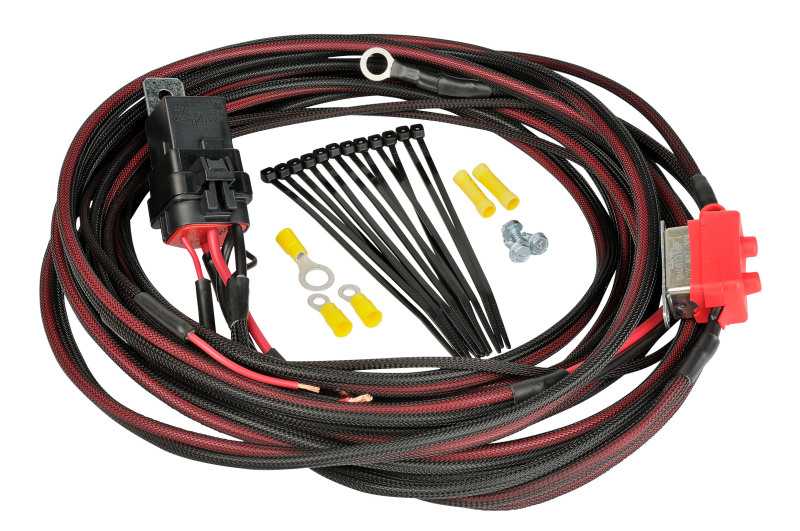

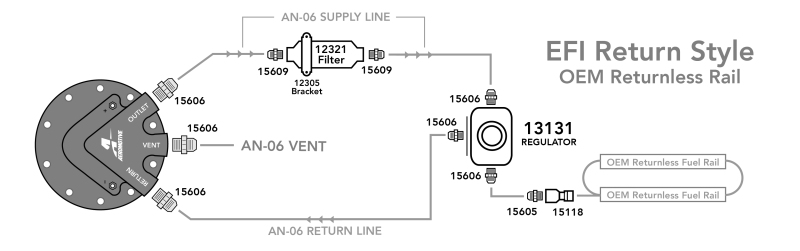

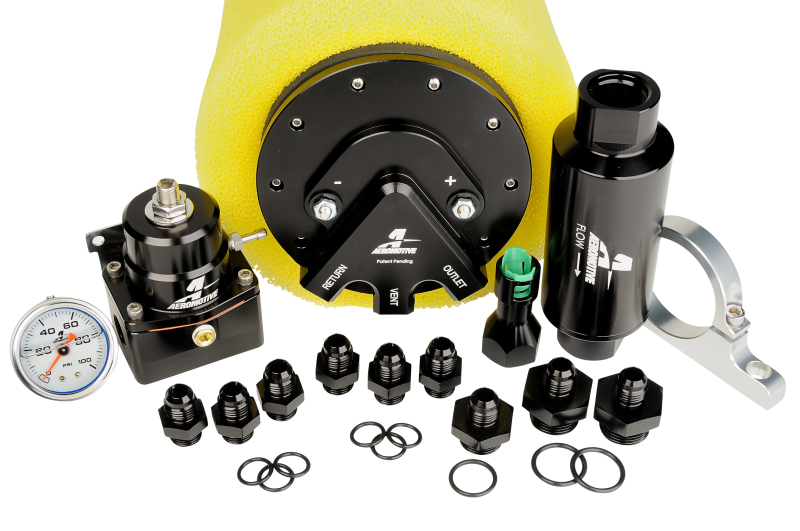

These new Phantom EFI Fuel Systems include all main fuel system components required to create a proper return-style EFI fuel system for engines with OEM ?return-less? style fuel rails, including the desired Phantom Baffled Fuel Pump Kit with a 340 LPH fuel pump.?Each system ships with the a custom black EFI bypass fuel pressure regulator, high-flow billet fuel filter, filter mounting bracket, 3/8? Quick-Connect fuel rail adapter, plus all the required port fittings and o-rings, the deluxe wiring kit (not shown) and Aeromotive fuel pressure gauge. Ideal for late model engine transplants so hot with Street Rodders around the world.?Suitable for naturally aspirated and blown, EFI engines producing from 300- 700 plus flywheel Horse Power, on the street or at the track.?AN-06 Style fuel hose and hose-ends are required for the installation of a fuel supply and return line, sold separately and not included.?This kit contains the following parts:?1ea p/n 18688 Phantom 340, 1ea p/n 12321 Filter 10 micron Paper, 1ea p/n 12305 Filter Bracket, 1ea p/n 13131 Fuel Pressure Regulator, 1ea p/n 16307 Fuel Pump Wiring Kit, 1ea p/n 15118 3/8 Quick Connect to AN-08, 1ea p/n 15605 AN-08 ORB to AN-06 flare, 6 ea p/n 15606 AN-06 ORB to AN-06 flare, 2 ea p/n 15609 AN-10 ORB to AN-06 flare, 1ea p/n 15633 0-100 psi Gauge.
Category:
Fuel Delivery>Fuel Systems
Core:
N
LTL:
N
MPN:
17166
Proposition 65:
Y
Special Order:
Y
CARB:
This product is not CARB Legal and not for sale in California
