Aeromotive

Aeromotive Phantom 340 Fuel System - Return Style w/Y-Block - 17164

$1,575.95
No reviews yet Write a Review

Image is a representation of this item. Actual item may vary.

SKU:
AER17164
UPC:
684980005981
Availability:
Special order
  • Free Ground Shipping

  • Easy Checkout

  • Safe Payments

  • Amazing Selection

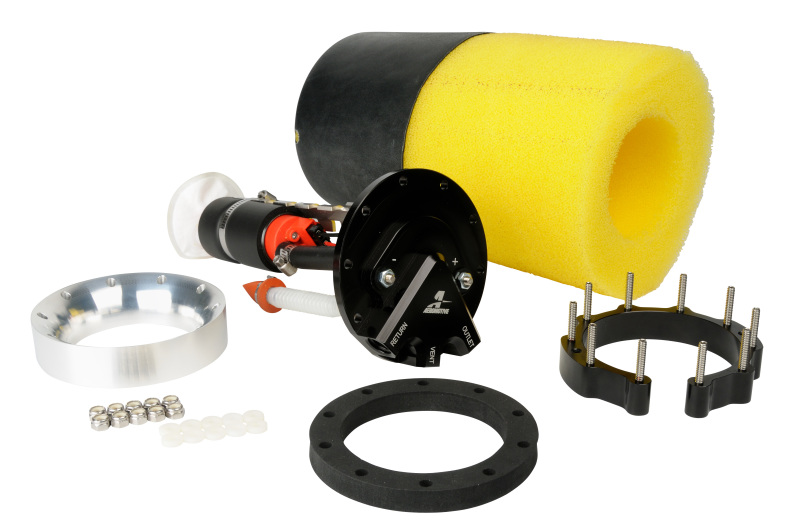

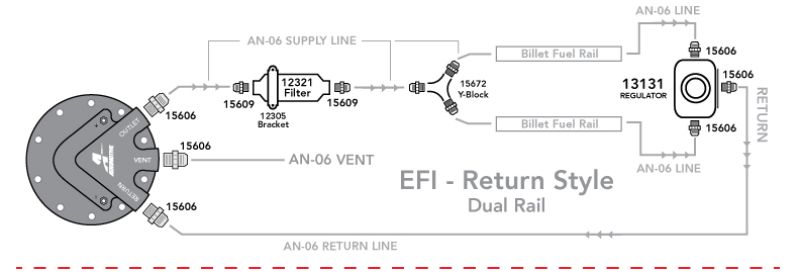

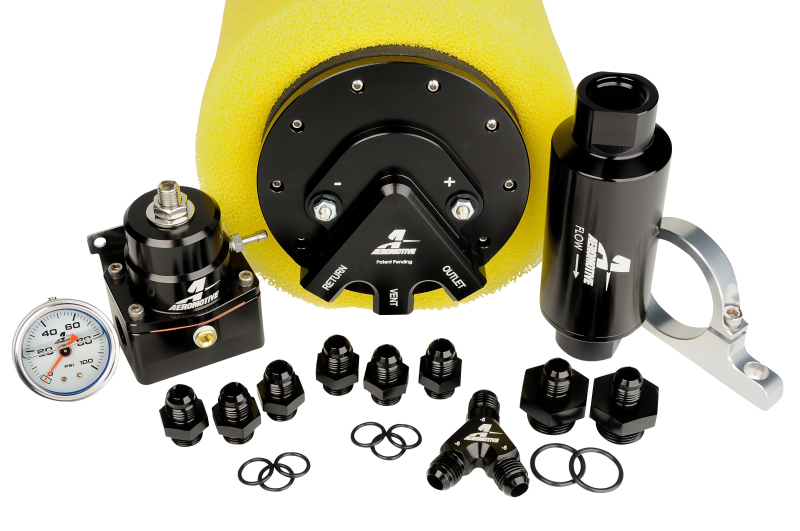

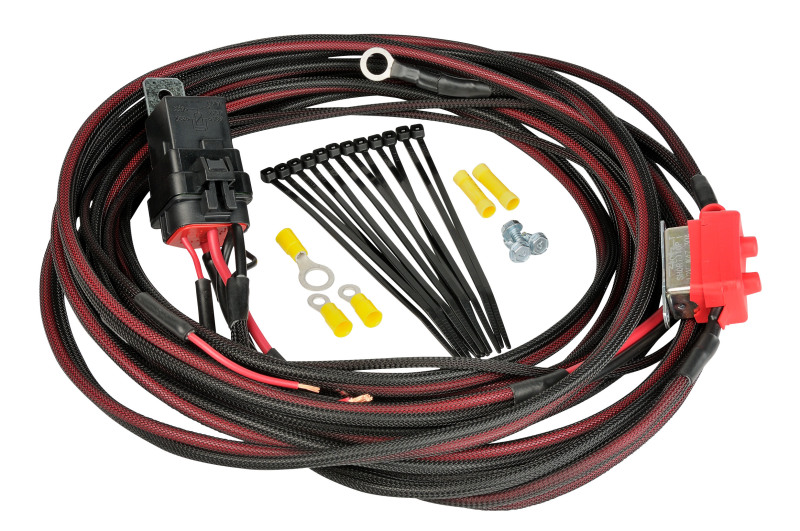

These new Phantom EFI Fuel Systems include all main fuel system components required to create a proper return-style EFI fuel system for engines with dual billet fuel rails, including the desired Phantom Baffled Fuel Pump Kit with a 340 LPH fuel pump.?Each system ships with the a custom black EFI bypass fuel pressure regulator, high-flow billet fuel filter, filter mounting bracket, hi-flow Y-block, plus all the required port fittings and o-rings, the deluxe wiring kit (not shown) and Aeromotive fuel pressure gauge. Ideal for naturally aspirated and blown, EFI engines producing from 300 ? 700 plus flywheel Horse Power, on the street or at the track.?AN-06 Style fuel hose and hose-ends are required for the installation of a fuel supply and return line, sold separately and not included. This kit contains the following parts:?1ea p/n 18688 Phantom 340, 1ea p/n 12321 10-micron Filter Assembly, 1ea p/n 12305 Filter Bracket, 1ea p/n 13131 Fuel Pressure Regulator, 1ea p/n 16307 Fuel Pump Wiring Kit, 6 ea p/n 15606 AN-06 ORB to AN-06 flare, 2 ea p/n 15609 AN-10 ORB to AN-06 flare, 1ea p/n 15633 0-100 psi Gauge, 1ea p/n 15672 AN-06Y-Block.
Category:
Fuel Delivery>Fuel Systems
Core:
N
LTL:
N
MPN:
17164
Proposition 65:
Y
Special Order:
Y
CARB:
This product is not CARB Legal and not for sale in California
