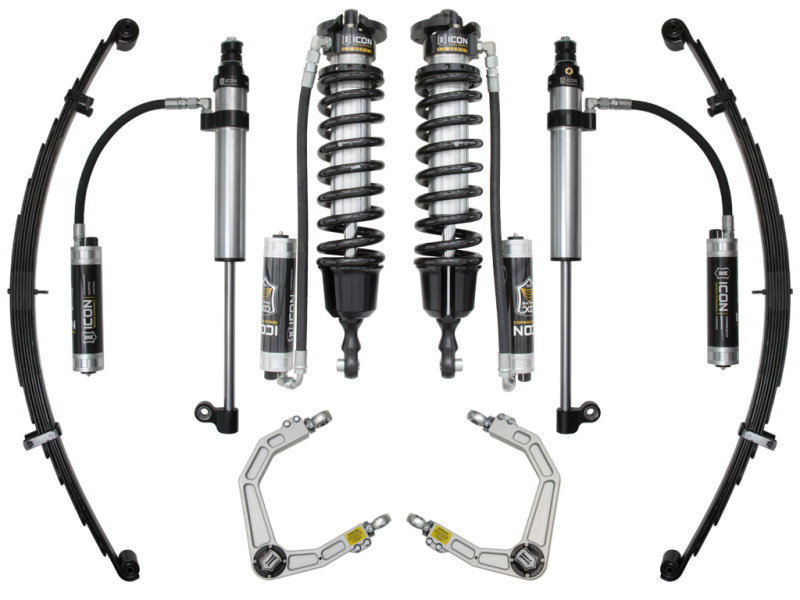

The Stage 1 3.0 system includes vehicle-specific tuned 3.0 Series coilover shocks equipped with ICON's CDC (Compression Damping Control) Valve. The easy-to-adjust CDC Valve allows for end-user compression changes to provide optimal ride quality across all types of terrain and vehicle cargo configurations. The larger 3.0 Series shocks offer 50% more piston surface area in the ride zone of the shock's travel, and 100% in the “Bump Zone”, compared to 2.5 Series shocks. The multi-stage hydraulic Bump Zone exponentially increases bottom-out resistance as the shock travels through the last 40% of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles. In addition, the coilovers feature a remote reservoir for exceptional cooling properties, ICON-engineered oil springs for superior vehicle “feel” through the range of travel, and are height adjustable from 1.63-3” allowing the use of larger, more aggressive wheel and tire combinations. Used in conjunction with the included ICON upper control arm, these coilovers increase droop travel to the front suspension.
This Part Fits:
| Year | Make | Model | Submodel |
|---|
| 2014-2021 | Toyota | Tundra | 1794 Edition |
| 2007-2013 | Toyota | Tundra | Base |
| 2007-2021 | Toyota | Tundra | Limited |
| 2021 | Toyota | Tundra | Nightshade |
| 2010-2021 | Toyota | Tundra | Platinum |
| 2014-2021 | Toyota | Tundra | SR |
| 2007-2011,2014-2021 | Toyota | Tundra | SR5 |
| 2021 | Toyota | Tundra | Trail |
| 2015-2017,2019-2021 | Toyota | Tundra | TRD Pro |
