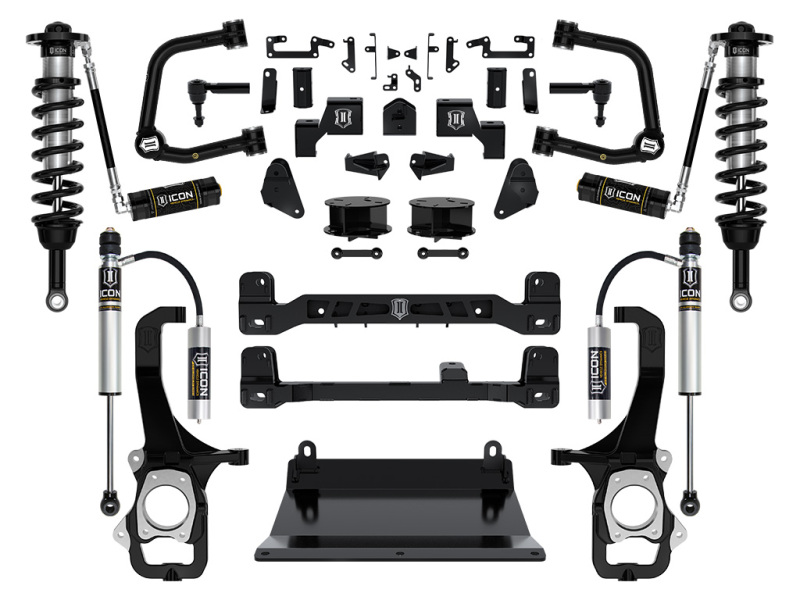

The ICON Vehicle Dynamics Stage 3 6" Suspension System is engineered to maximize the capability of the 2022-2026 Toyota Tundra, delivering exceptional ride quality, increased wheel travel, and the durability required for serious off-road use. Vehicle-specific tuned 2.5 Series front coilovers with remote reservoirs provide outstanding damping performance while increasing fluid capacity and improving heat dissipation for consistent performance during extended off-road driving. The system delivers up to a 40% increase in front wheel travel over stock without overstressing OE suspension components and features adjustable front ride heights from 5-6 inches of lift. Through innovative engineering, the system achieves a full 6 inches of front lift with only 4 inches of crossmember drop, preserving ground clearance while minimizing CV joint angles. Tubular upper control arms equipped with ICON's patented Delta Joint Pro (U.S. Pat. 10,731,700) provide increased strength, exceptional durability, improved caster correction for enhanced drivability, and 90 degrees of total articulation for unrestricted suspension movement. The system maintains factory track width while optimized suspension geometry nearly eliminates the bump steer common to stock Tundras.
This Part Fits:
| Year | Make | Model | Submodel |
|---|
| 2022-2026 | Toyota | Tundra | 1794 Edition |
| 2022-2026 | Toyota | Tundra | Limited |
| 2022-2026 | Toyota | Tundra | Platinum |
| 2022-2026 | Toyota | Tundra | SR |
| 2022-2026 | Toyota | Tundra | SR5 |
| 2022-2026 | Toyota | Tundra | TRD Pro |
